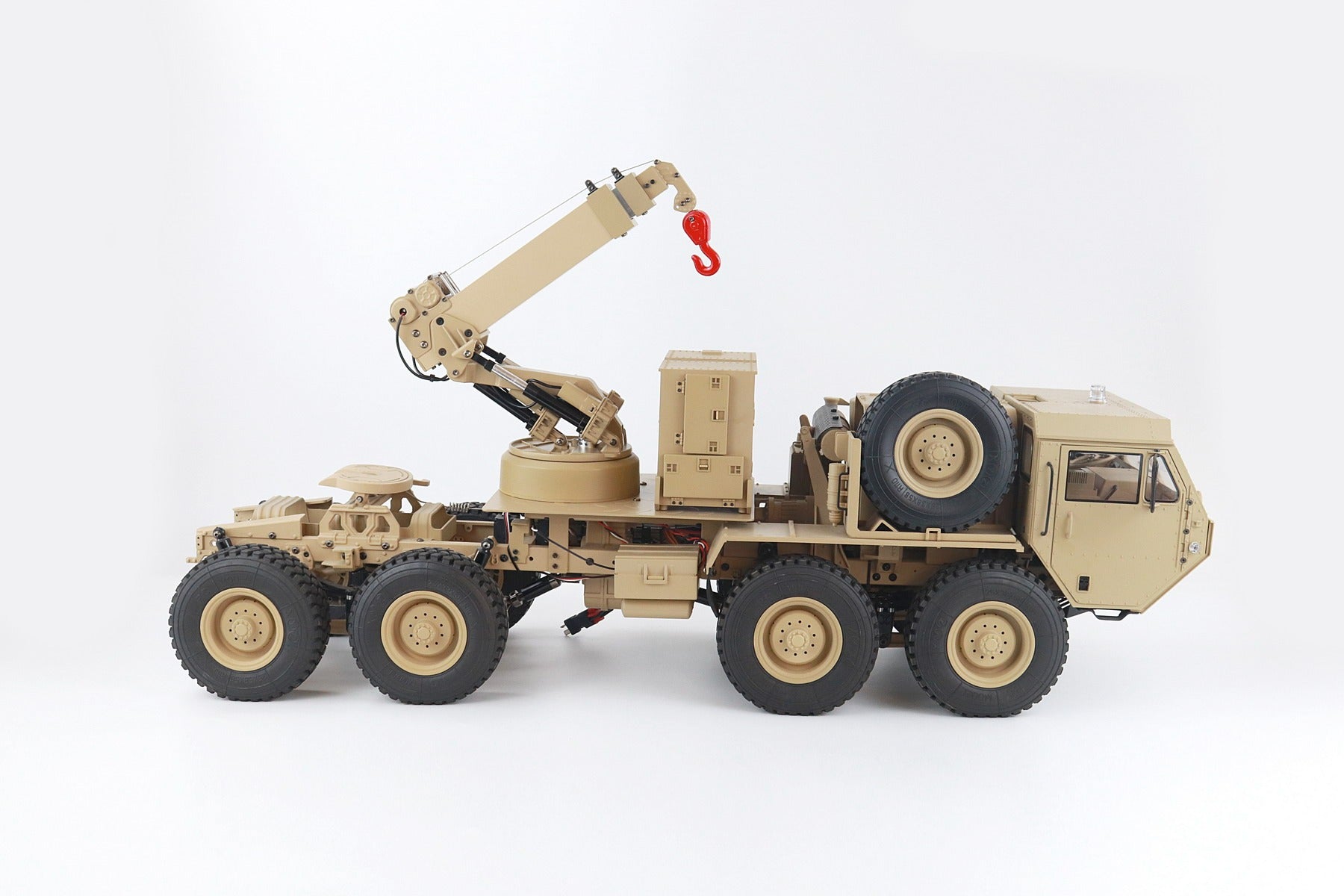

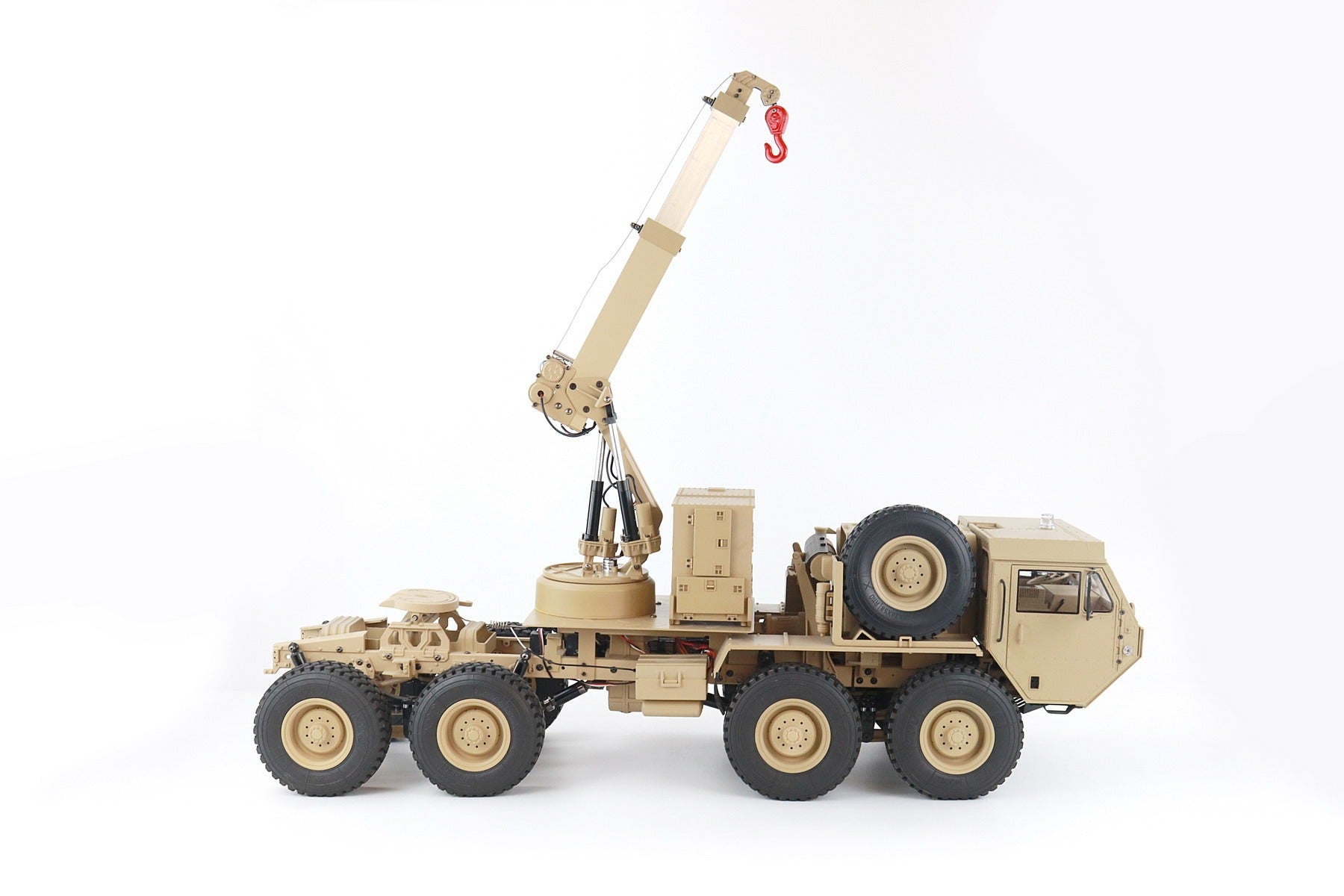

1. The boom can be raised and lowered by 55° 2. The maximum extension length of the boom is 245mm 3. The total length of the winch cable is 500mm 4. The lifting height of the hook is 460mm 5. The maximum lifting weight of the hook is 1.2KG 6. The rotation angle of the turntable of the main boom base is 360°
Packing List:
Operation manual *1 Boom sticker *1 Main boom (built-in electric control system) *1 Base *1 Bracket *2 Control room *1 3*8mm TM screw *6 2*6mm HM screw *8 3*8mm HB screw *8
Carton:
CTN Size:
43*20*26
QTY/CTN:
1PCS
G.W./N.W.:
2.8 KG/2.3 KG
Detail part
1. Military card upgrade and modification assembly 2. 8 2A conductive slip ring connection control 3. 5 groups of high-precision geared motors are independently controlled separately 4. The base of the boom turntable can be rotated 360° 5. The assembly adopts independent intelligent control circuit system 6. DuPont cable with 8-way receiver POW channel 7. Built-in transfer PCB board 8. The total lifting weight is 1.2KG 9. Pure electric telescopic support rod 10. All functions have jam protection (circuit) 11. High-precision and high-simulation truck-mounted crane 12. All functions can be controlled remotely 13. High-strength base bracket
