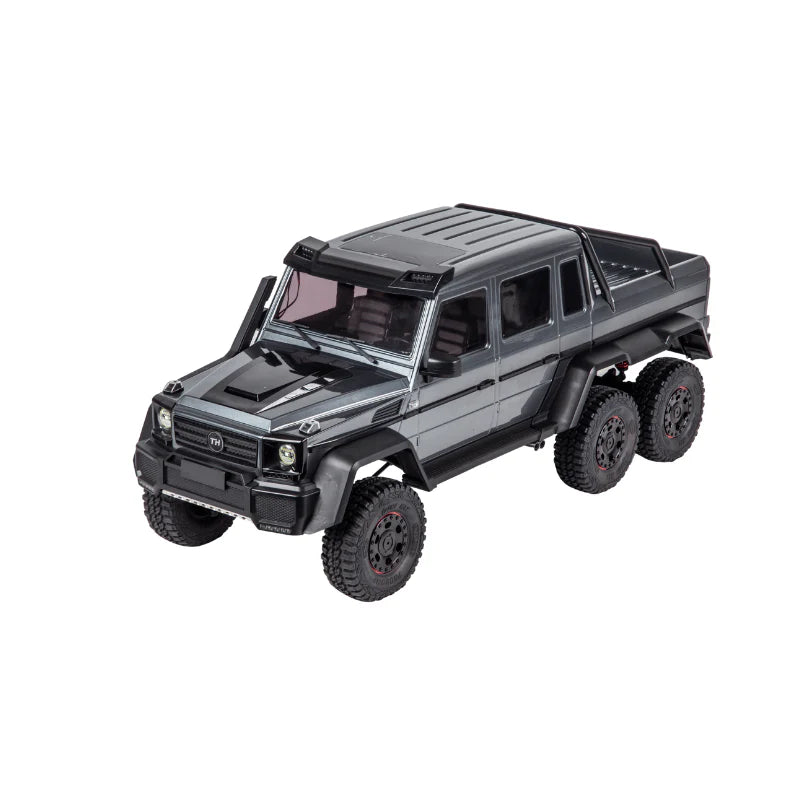

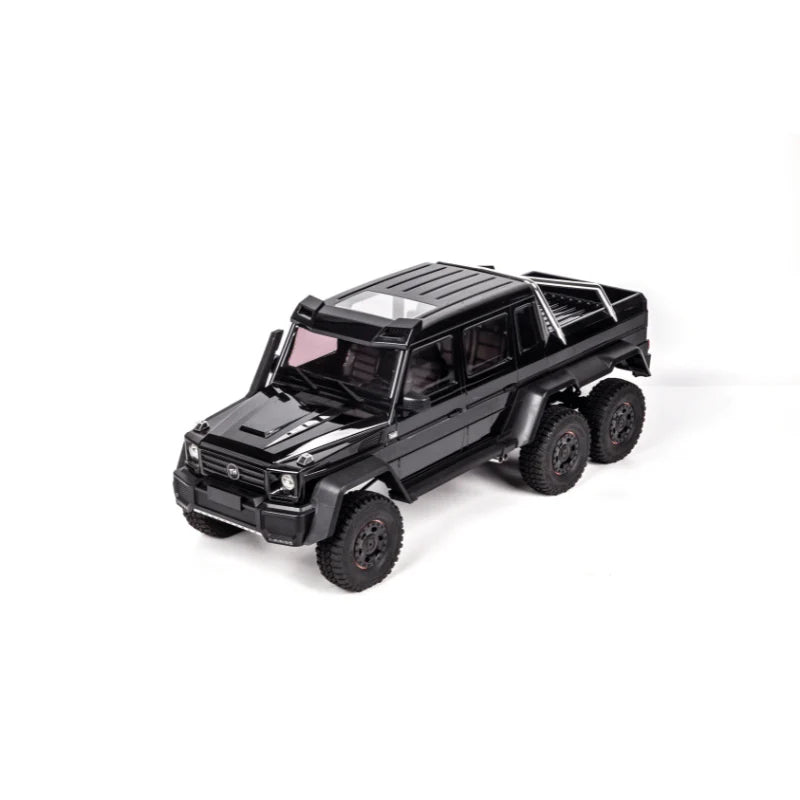

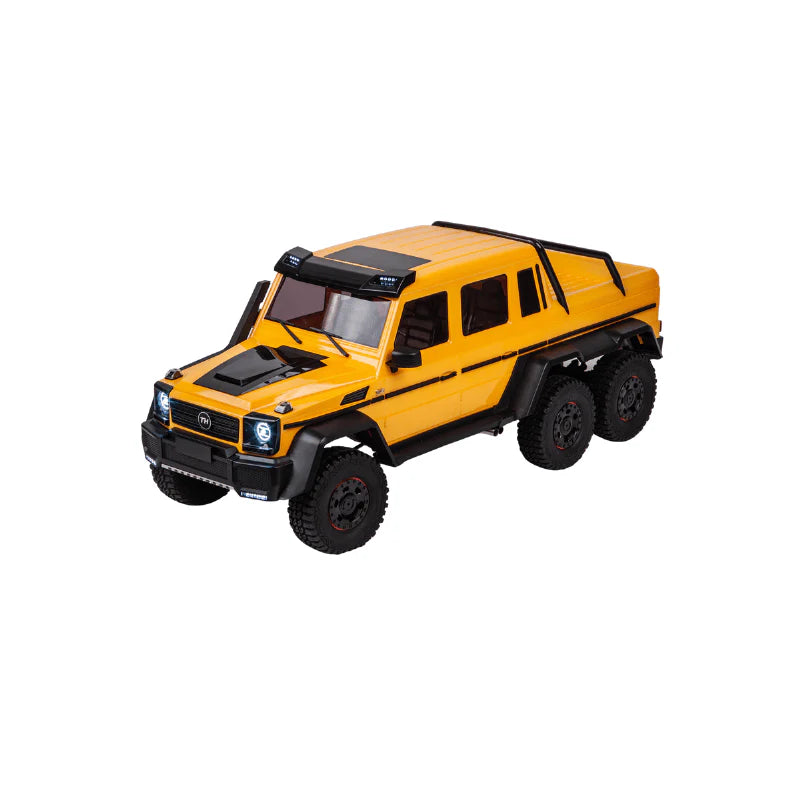

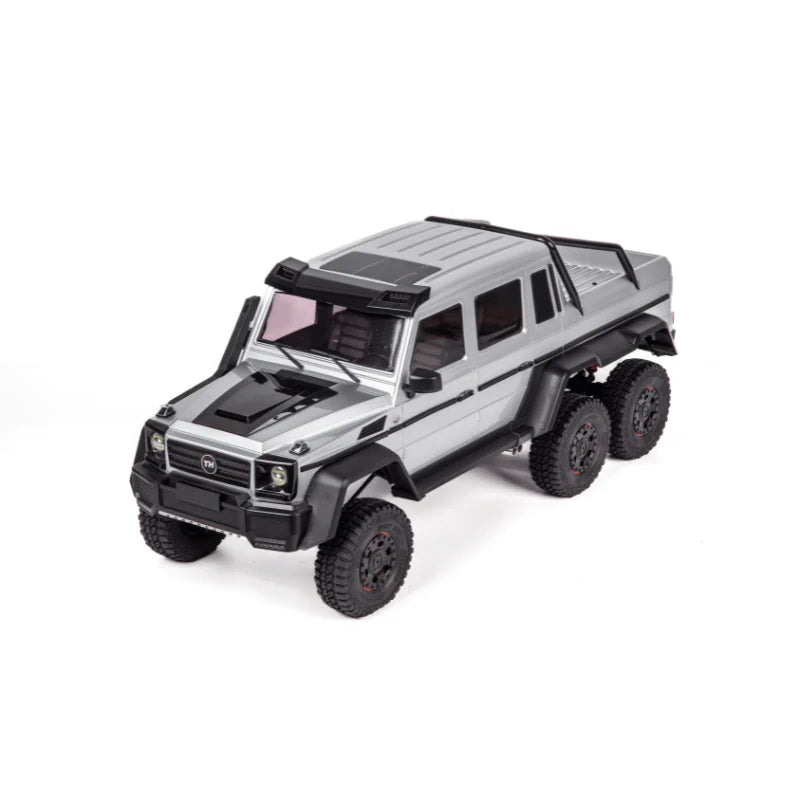

Traction Hobby BG630 Pro 1/8 Portal Axle 6x6 Crawler

Mian  Features:

• Official Traction Hobby Model – High-detail vacuum-molded PC body and fenders
• Front/Mid/Rear Portal Axles – CNC axle covers for durability
• Selectable Diff Locks – Lock front, mid, and rear differentials for improved control
• 6WD Drivetrain – Rear, front, and 6WD driving modes for ultimate traction
• Integrated 2-Speed Metal Gearbox – Includes reverse and multiple drive modes
• Motor Compatibility – Standard #775 brushed or 1:8 brushless motors (46x75mm), adjustable gear gap 12-20T, equipped with 14T
• Durable Transmission – Metal gears with 7mm thick metal shafts
• Precision Steering – Multi-link rods with 23Kg metal servo and 25T metal servo arm using Ackerman steering system
• Strengthened Metal Parts – 5mm metal rods, stainless steel ball ends, reinforced axle shafts, and full metal gears throughout
• Full Metal Adjustable Shocks – 102mm travel with 550CST shock oil, supports upgrade to double shocks
• Robust Shafts & Rods – 7mm thickened metal shafts and 5mm alloy steel rods
• Large Tires & CNC Wheels – 6 tires measuring 160mm diameter and 47mm width with 2.2" rims, PROCOMP marked
• Scale Simulation Parts – Roof rack ladder, bumper, lights, wipers, door knobs, pedals, grille, mirrors, gantry
• Convenient Features – Quick-release 1.5mm body, XT60 ESC plug, linked steering wheel

Specifications:

• Brand: Traction Hobby (TH)
• Model: BG630 1:8 PTA Crawling Car
• Colors: Black, Silver, Grey, Yellow
• Battery Size: 150×46×40mm (2-4S LiPo compatible)
• Vehicle Dimensions (Package): 772×280×300mm (930×340×360mm)
• Wheelbase: 400mm + 140mm
• Wheel Track: 237.5mm
• Minimum Ground Clearance: 50mm
• Approach / Passing / Departure Angles: 47.5° / 43° / 43.5°
• Net Weight: 8.5kg | Gross Weight: 11.2kg
• Size Weight: 22kg

Electronics & Control:

• Remote Control: Dumbo DDF-350 + X10FG 10-channel color LED display
• ESC: Hobbywing 880 (BEC 7.4V) customized high-voltage waterproof ESC
• Motor: RS775 brushed motor, custom 21,000 rpm
• Servos: 1× TH1623HV digital steering servo, 5× TH1036HV digital function servos
• Lights: Simulation SMT + LED light kit
