Brand
Traction Hobby (TH)
|
|
Model
|

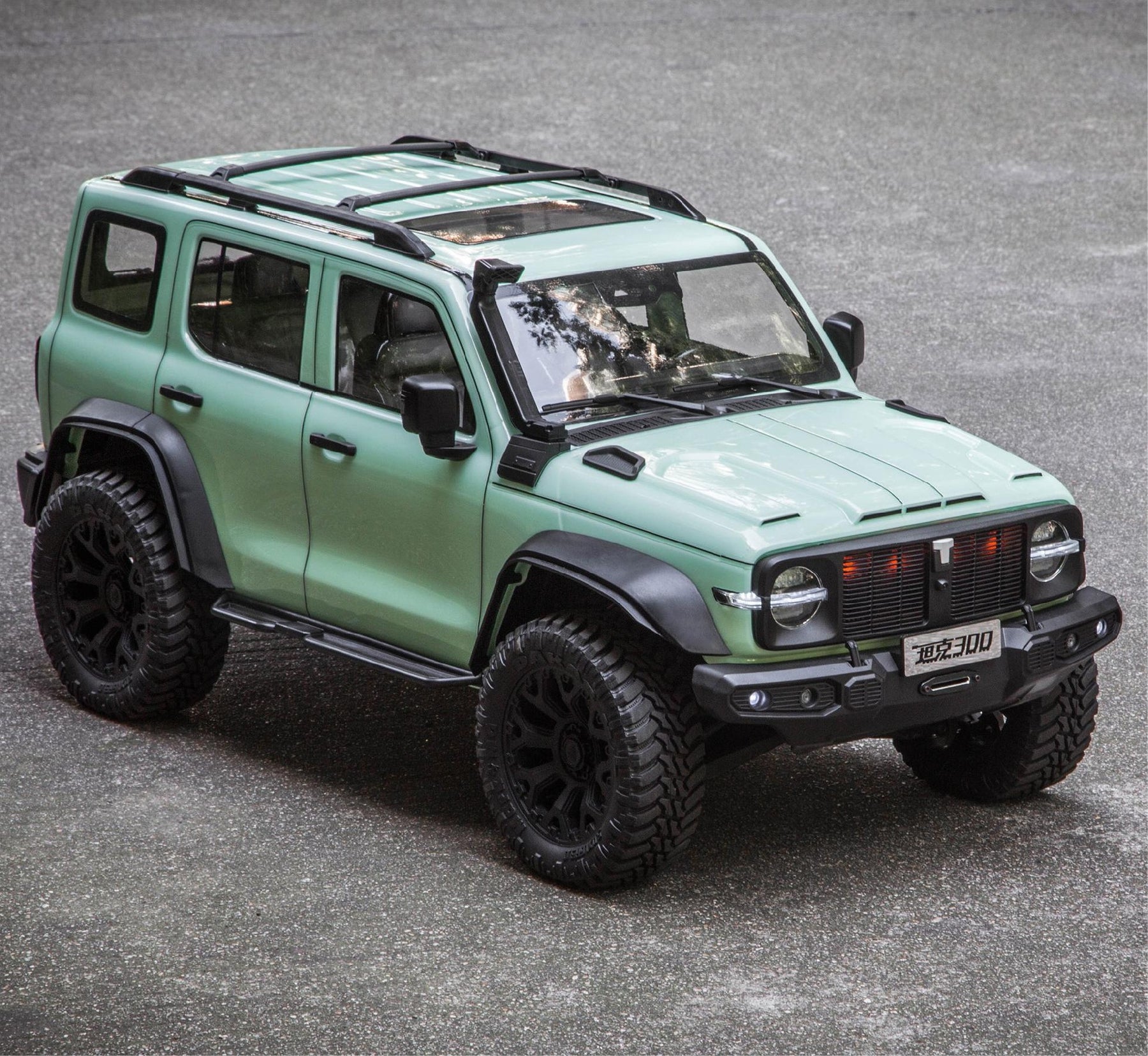

1:8 Tank300 CV (Independent Suspensions)
|
|
|
Colors
|
Silver/Green/Light Green
|
|
|
Battery Capacity & Size
|
2-4S Lipo Available(150*46*40mm)
|
|
|
Car Dimension(Package)
|
642*272*275mm (700*320*370mm )
|
|
Wheelbase
|
374mm
|
|
|
Wheel Track
|
231mml
|
|
Min Ground Clearance
|
39mm
|
|
|
Approach/Passing/Departure
|
45°/40°/42°
|
|
N.W./G.W.
|
7.5KG/10.2KG
|
|
|
Motors, Servos & Transmission ,Steering System
|
|
|
|
Available Servos
|
#775 Brush Or 1:8 Brushless
|
Max D:46mm, L:75mm
|
|
Motor Gears
|
Equiped 14T
Adjustable Gear Gap 12-20T
|
|
Gearbox
|
Integrated Gearbox
|
2 Speeds/ReversionFront/Rear/4WD In Gear
|
|
Shifts
|
2 Shifts
Metal Gears High Voltage Waterproof Servo
|
|
Broken Transmission
|
Servo Pulling
Metal Gears High Voltage Waterproof Servo
|
|
Steering System
|
Multi-links Rod
Metal CNC Casting
|
|
Sevro Arm
|
Metal Steering (25T)
|
Metal CNC Casting
|
|
Steering Way
Servo Pulling(Servo Protection)
|
23Kg Metal High Voltage Servo
|
|
Main Structure
|
|
|
Chassis
1.5mm Steeling C-Shape Chassis
|
|
|
Driving
|
3 differential distribute in front,middle and rear
|
Front/Rear/4WD
|
|
Suspensions
Independ Suspensions
|
Steel Rods
|
|
Transmission
Metal Gear, 7mm Metal Shaft
|
|
|
Shocks
|
Front Shocks: 81mm; Rear Shocks: 93mm
|
Full Metal
|
|
Shafts
Metal Thickening Shafts
|
|
|
Axles
|
Front Independent Suspension/Rear Solid Axle(Available Diff) Nylon Axle+CNC Axle Cover
|
|
Simulation Parts
Roof Rack. Lights• Wiper• Doorknob Internal Ornaments
|
|
|
Tyres/Wheel Hub
|
Tyres: D:128mm W:47mm (2.2 Inch Nylon Hub)
|
|
|
Rear Pendants
Simulation Oil Tank, Escape plate, Spade, Oxe
|
|
|
Electronics
|
|
|
Remote Control

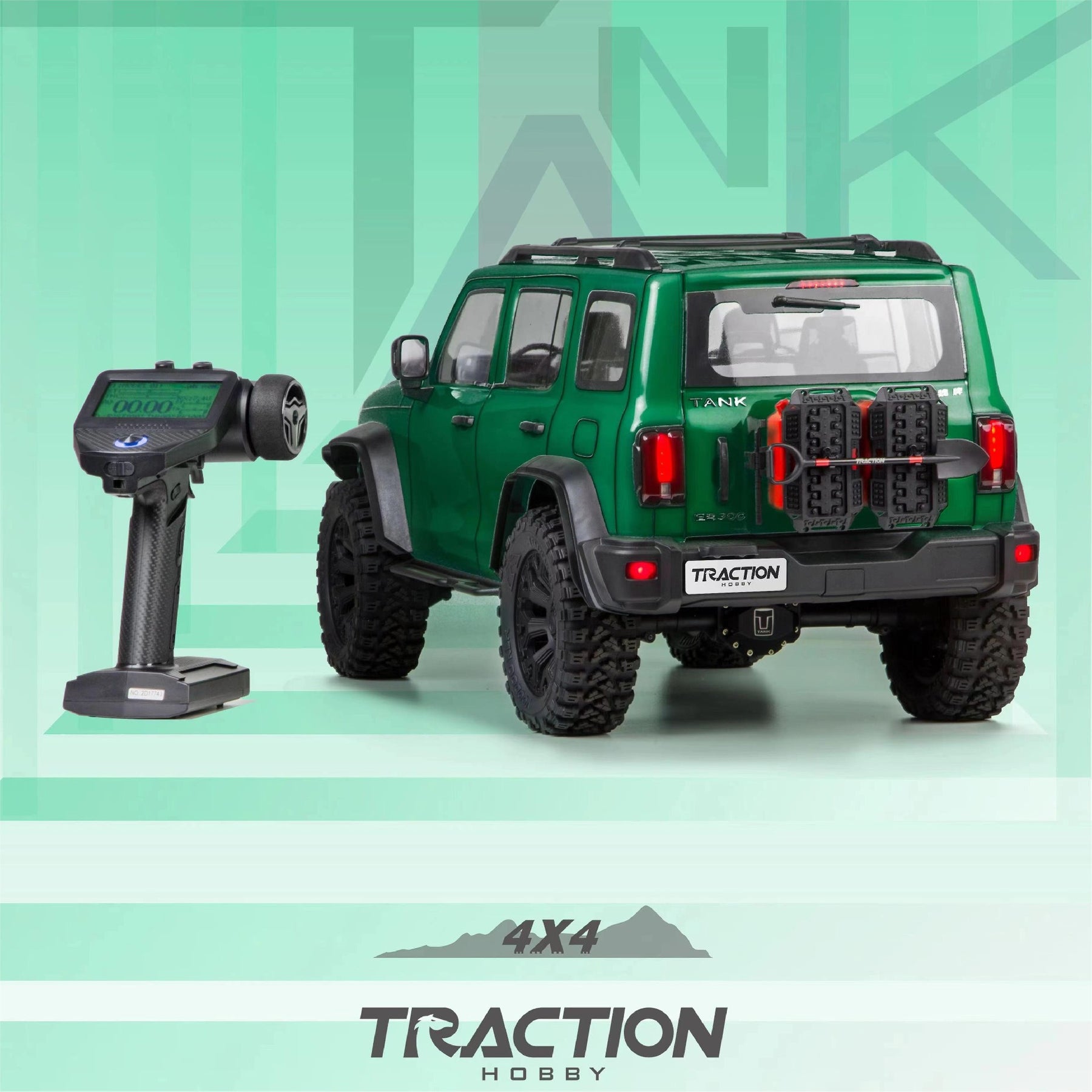

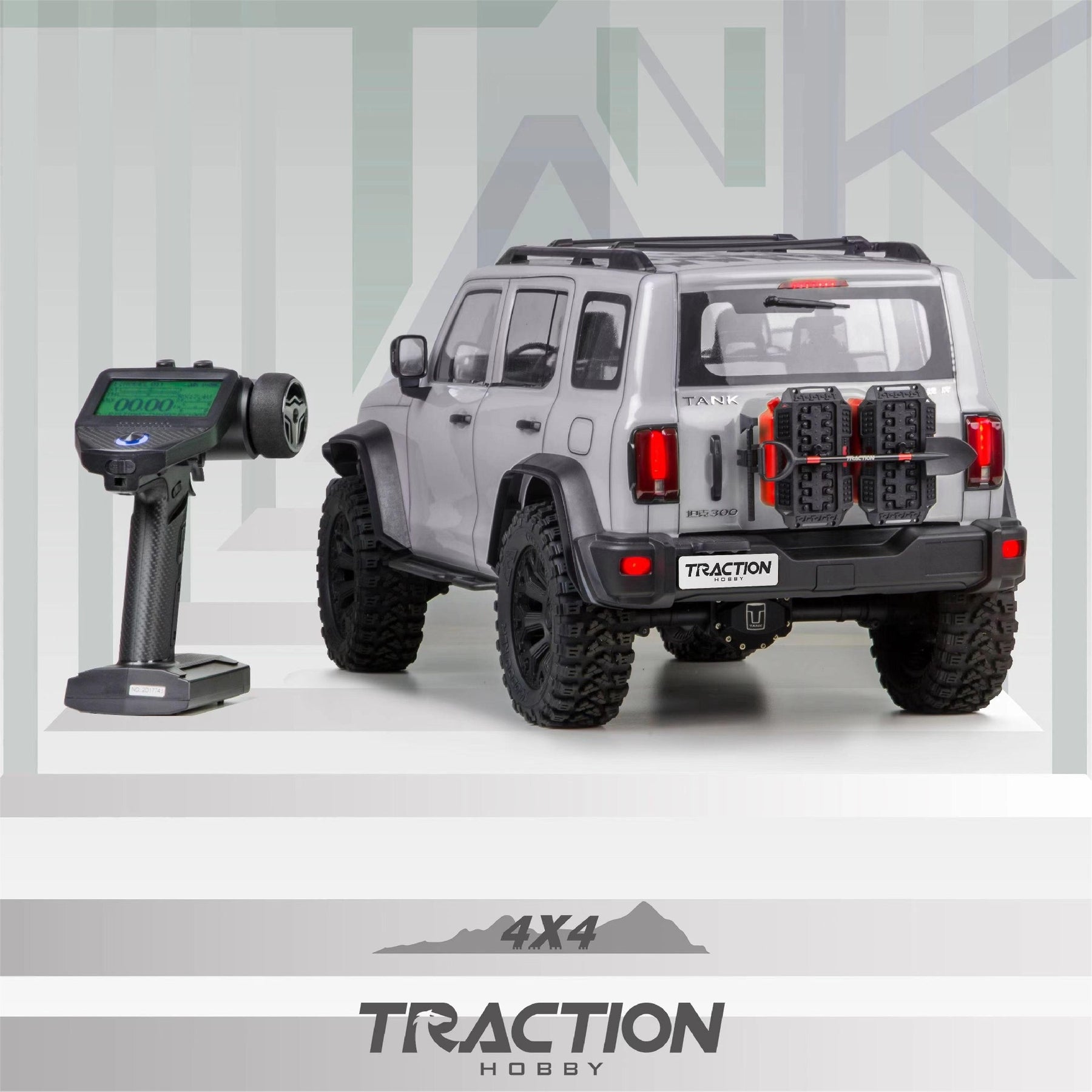

DDF-350+X10FG
|
10Channels, Colortul Digital LED
|
|
ESC
Hobbywing 880 (BEC7.4V)
|
Customized HV Water-proof ESC
|
|
Motor
RS775 Brushed Motor
|
Customized Motor 21000rpm
|
|
Servos
TH1623HV High Voltage Digital Steering Servo, TH1036HV High Voltage Digital Functioning Servos
|
|
|
Light Set
Simulatio
|
