Traction Ford Bronco Raptor Scale 1:8 (Brushless)
- Low stock - 5 items left
- Inventory on the way

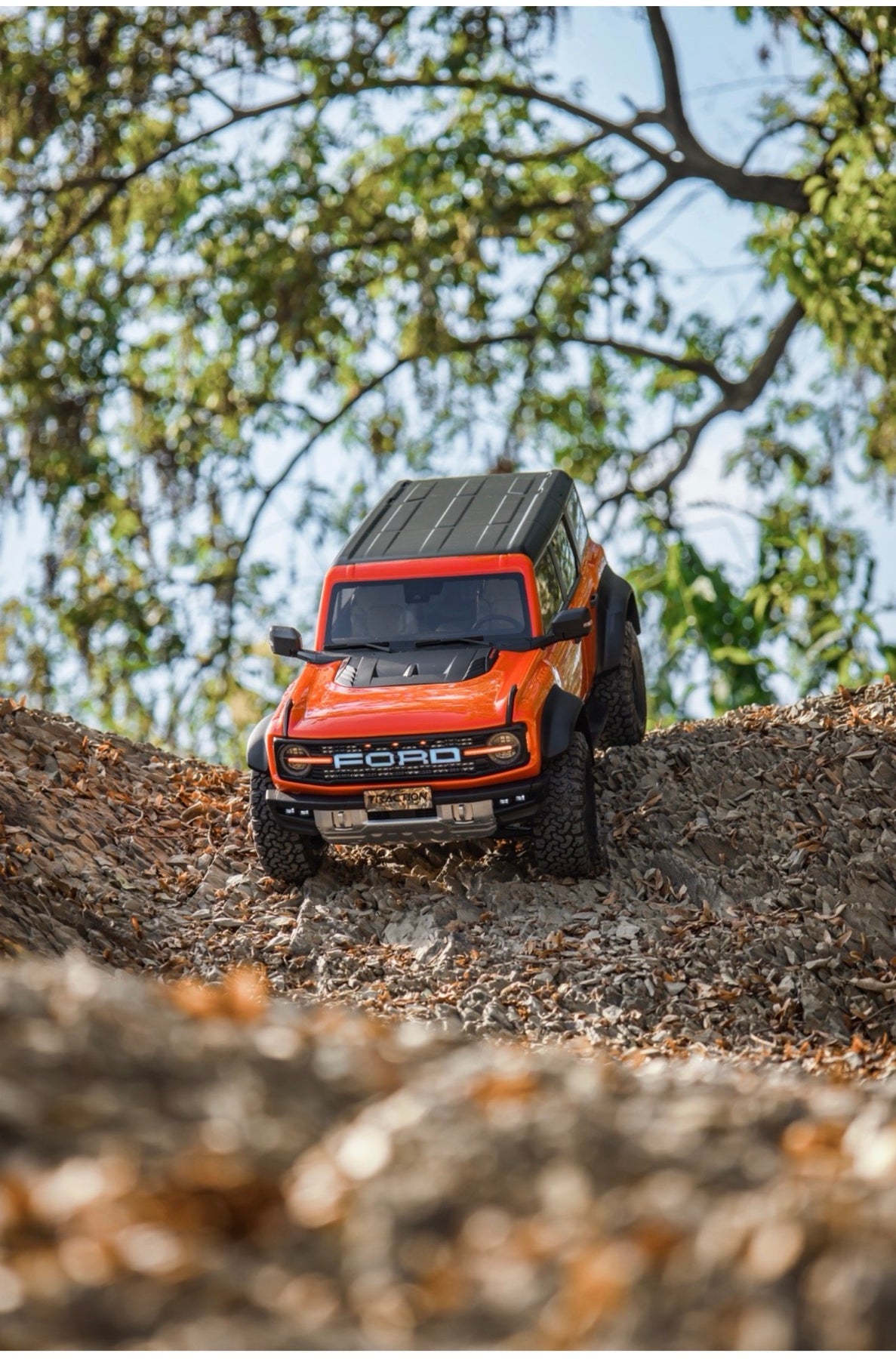

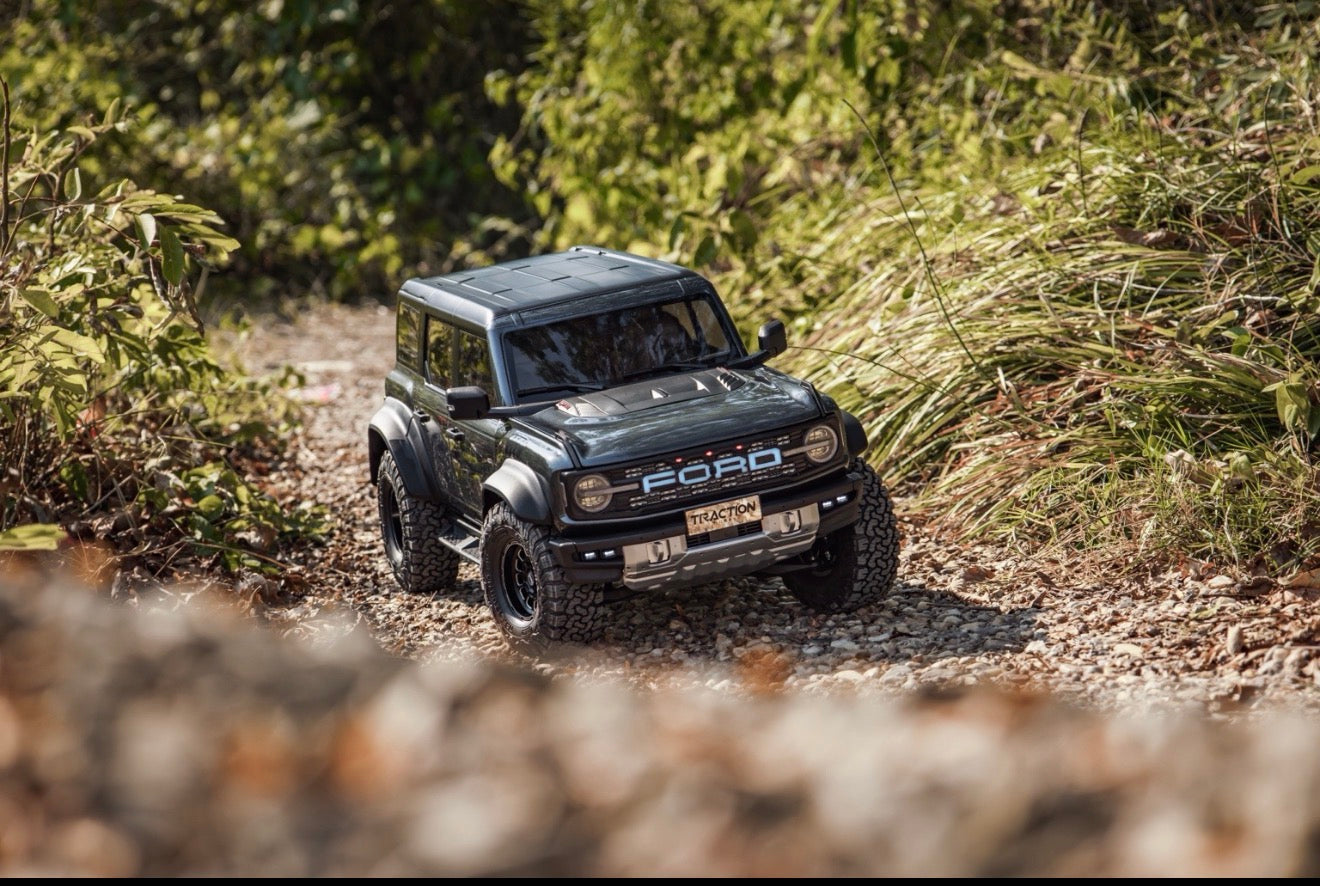

Tractionhobby 1:8 IFS Rear Solid Axle Ford Bronco Raptor RC Off-road Car（Brushless）
General Information
Brand Tractionhobby (Ford License Product)
Model FBRBRS (1:8 Ford Bronco Raptor, Brushless)
Colors Orange/Grey
Battery Size & Capacity 150mmx46mmx40mm (Available 2-4S)
Car Dimension(Package) 625*282*255mm (820*350*300mm)
Wheelbase 376mm
Wheel Track 227mm
Mini Ground Clearance 43mm
Approach/Passing/Departure 48.5°/36.5°/38°
N.W./G.W./Size Weight. 6.8KG/9.6KG/18KG
Tech Parameters & Specifications
Body & Chassis Vacuum Moulding 1.5mm PC(Lexan) Body 1.5mm Steel C-Shape Chassis
Suspensions & Axles IFS Double Wishbone/Rear Solid Axle(Support Diff Lock); Nylon Axle+CNC Axle Cover, Steel Rods
Diffs & Driving Front/Rear Diff Lock Control RWD/FWD/AWD Driving Modes
Integrated Gearbox 2-Speeds, Reverse, RWD/FWD/AWD,4-output-Shaft Planetary Gear System,Broken Transmission
ESC & Motor 2in1 FOC Hobbywing Fusion 8IGHT (D:46mm, L:75mm)Modular Quick-change Gear Ratio ( 14-21T): 15T
Steering System Multi-links Rod, Servo Pulling Way 30Kg Coreless Servo With 25T Metal Servo Arm
Shock Absorbers Front: 81mm Upright; Rear: 93mm Upright Full Metal, 550CST Shock Oil
Shafts & Rods & Gears 7mm Thickening Metal Shafts, 5mm Alloy Steel Rods, Metal Transmission Gear
Tyres/Wheel Hub KO2 Simulated AT Tyre D：120mm W: 43mm 2.2 Inch CNC Alu Hub
Simulation Parts Lights、Wiper、Doorknob、Dash Board、Internal Ornaments, Folded Rear Mirror
Others Quick-released Body, XT60 ESC Plug To Battery, (RS. Without Charger & Battery)
Equiped Electronics
Remote Control Motor & ESC HV Digital Servos Lights Set RC Channels Setting
Fly-sky FS-G7P+, 10Channels, 2.4GHz Colorful Digital LCD Display With Gyroscope
Hobbywing Fusion 8IGHT, RTR, FOC Brushless Customized 2in1 FOC 1800KV
TH1230 Steering , 30kg; TH1036 Steer-Wheel, 4kg , TH1435*4, 35kg (Shifts, 2 Diff Locks, Driving Modes)
Contact-pin Simulated Light System(SMT+LED): Headlight, DRL, Hazard, Turn, Fog, Reverse, Bumper, Chassis
CH1: Steering; CH2: Throttle; CH3: High/Low Speed; CH4: FWD/AWD/RWD; CH5: Front Diff; CH6: Rear Diff;
CH7: Lights Modes; (Channel Setting Can Be Changed By Your Preference)
